FREUDE All-New Tuning Platform: AUDIO ARCHITECT The "Ultimate Weapon" of Acoustic Calibration!

With the launch of the all-new FP-8V5 / FP-10V5 series, we officially release our revolutionary tuning platform—AUDIO ARCHITECT—marking FREUDE's entry into a new era of "fundamental software reconstruction." We dismantled the legacy code framework and, through more rigorous algorithmic logic and hundreds of stability tests, aim to provide tuners with an operating environment as robust, precise, and efficient as architectural structures.

We deeply understand that complex in-car environments and diverse user habits are pain points for audiophiles. To address this, we rebuilt the functional matrix: while retaining traditional strengths like 31-band EQ and crossovers, we introduced multiple advanced algorithms to create the ultimate soundstage through minimalist control for every owner.

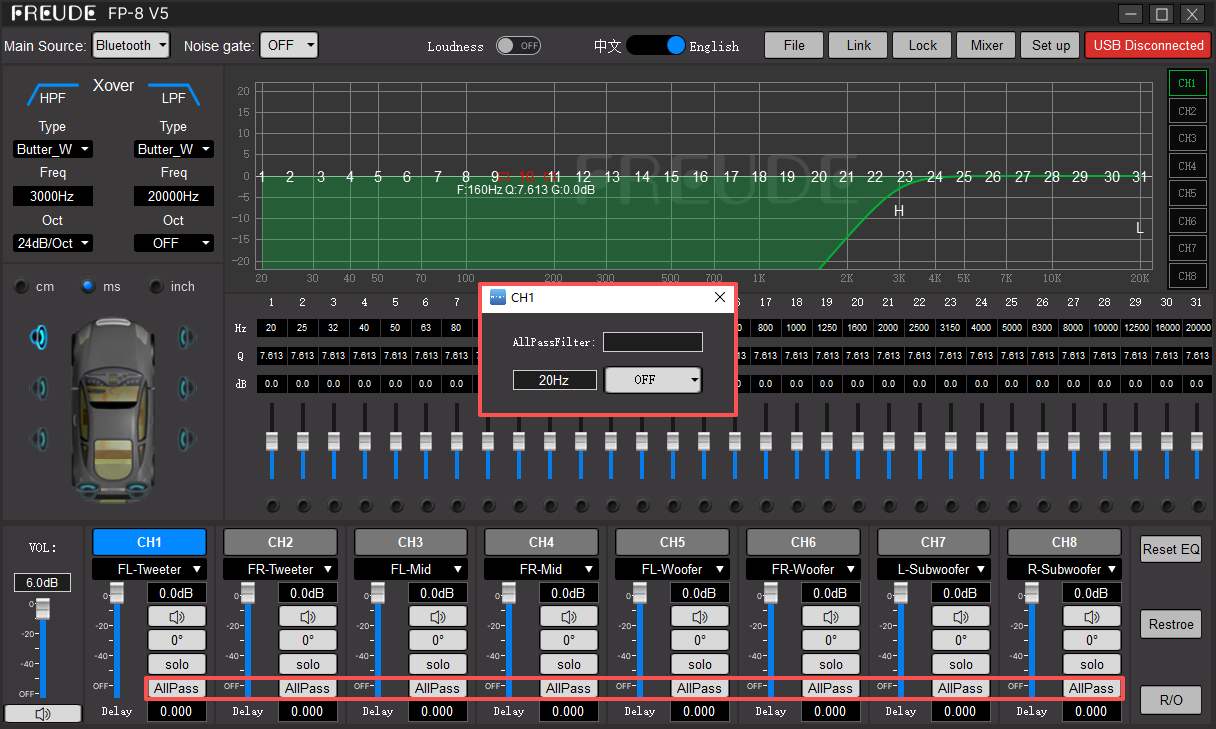

1. All-Pass Filter: Breaking the "Acoustic Shackles" of Physical Environments

• Owner’s Pain Point:Even with flat EQ, the sound still feels hollow and imaging is blurred? This is due to phase cancellation caused by uneven left-right speaker distances and complex reflection surfaces in the vehicle—a virtually unsolvable dead zone with traditional physical adjustment.
• Core Function:The software features a professional All-Pass Filter, which precisely adjusts phase across the full 20Hz–20kHz spectrum without altering frequency response (amplitude).
• User Benefit: Tuners can accurately repair soundstage collapse caused by seat offset or side-wall reflections, delivering sharper vocal focus and instrument positioning that feels palpably real.

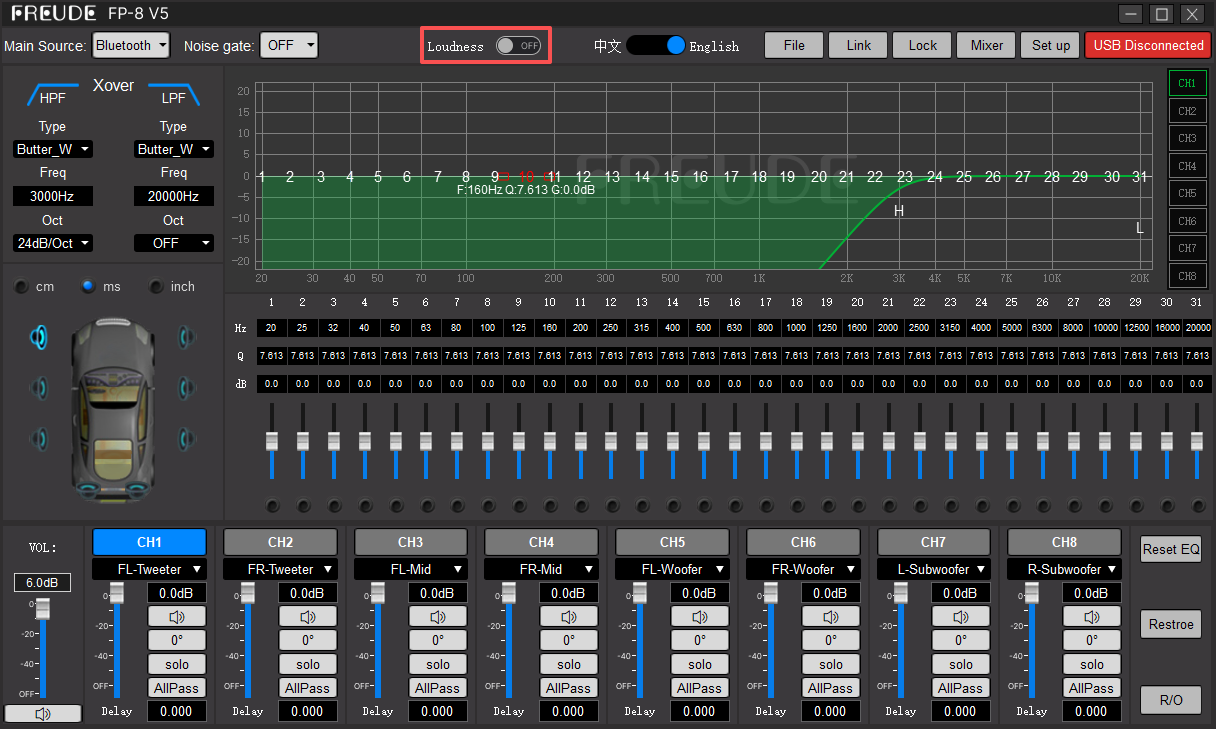

  1. Smart Loudness Compensation: "Rich Micro-Dynamics" at Low Volumes
  • Owner’s Pain Point: When lowering volume during night drives or conversations, music instantly becomes thin and lifeless—bass loses impact, treble loses detail. This is because human perception of high and low frequencies drops off a cliff at low volumes.
  • Core Function:Based on the Fletcher-Munson equal-loudness contour algorithm, the system intelligently detects volume changes in real time. When volume is reduced, the software automatically and dynamically compensates for lost low- and high-frequency energy.
  • User Benefit: Music maintains full atmosphere and rich micro-dynamics regardless of volume level—truly "powerful at high volumes, warm and rich at low volumes."

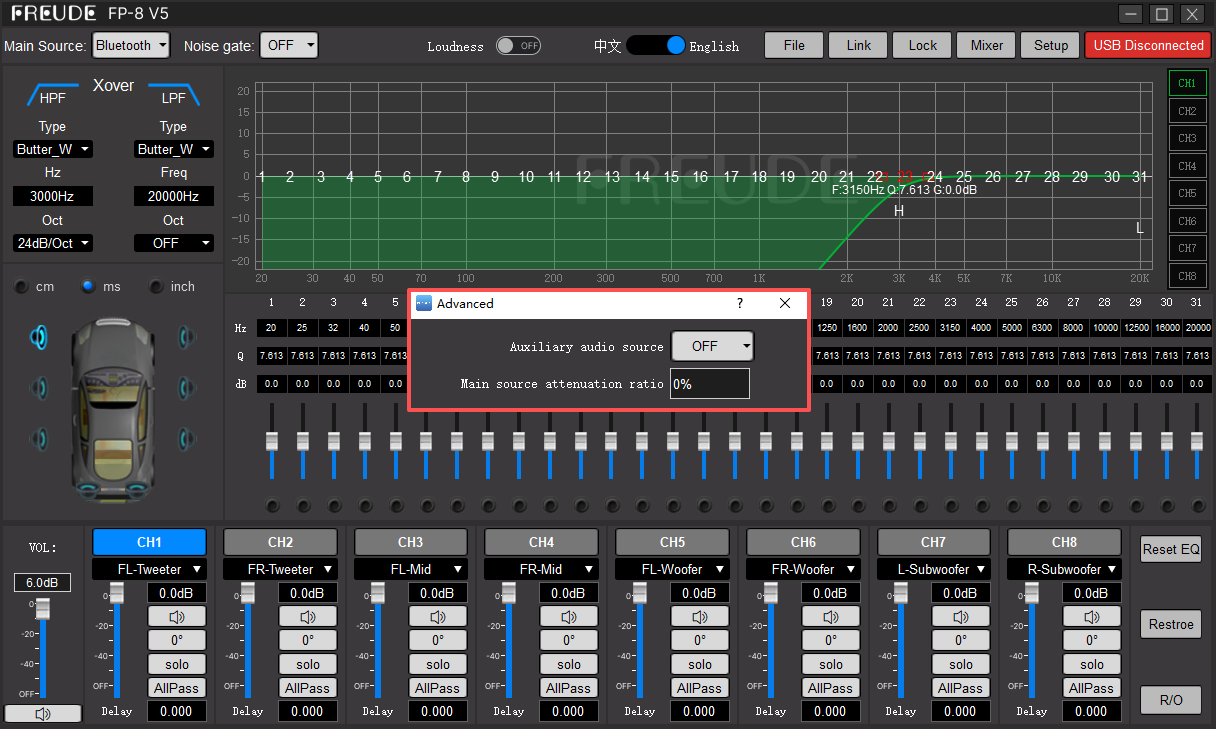

    1. IntelligentAudioDucking:Perfect "Ducking" Between Safety and Entertainment
    • Owner’s Pain Point:Immersed in a symphonic climax when navigation voice suddenly intrudes at full blast? Or music so loud it drowns out parking sensor alerts and voice assistant prompts?
    • Core Function:An intelligent mixing ducking solution optimized for driving safety. Users can precisely set attenuation ratio (0–100%) for the main audio source. When navigation or voice prompts activate, music automatically ducks and smoothly restores afterward.
    • User Benefit:No more manual volume adjustments—ensuring critical driving information remains crystal clear for intelligent and safe human-machine interaction.
      Note: This feature must be manually enabled.

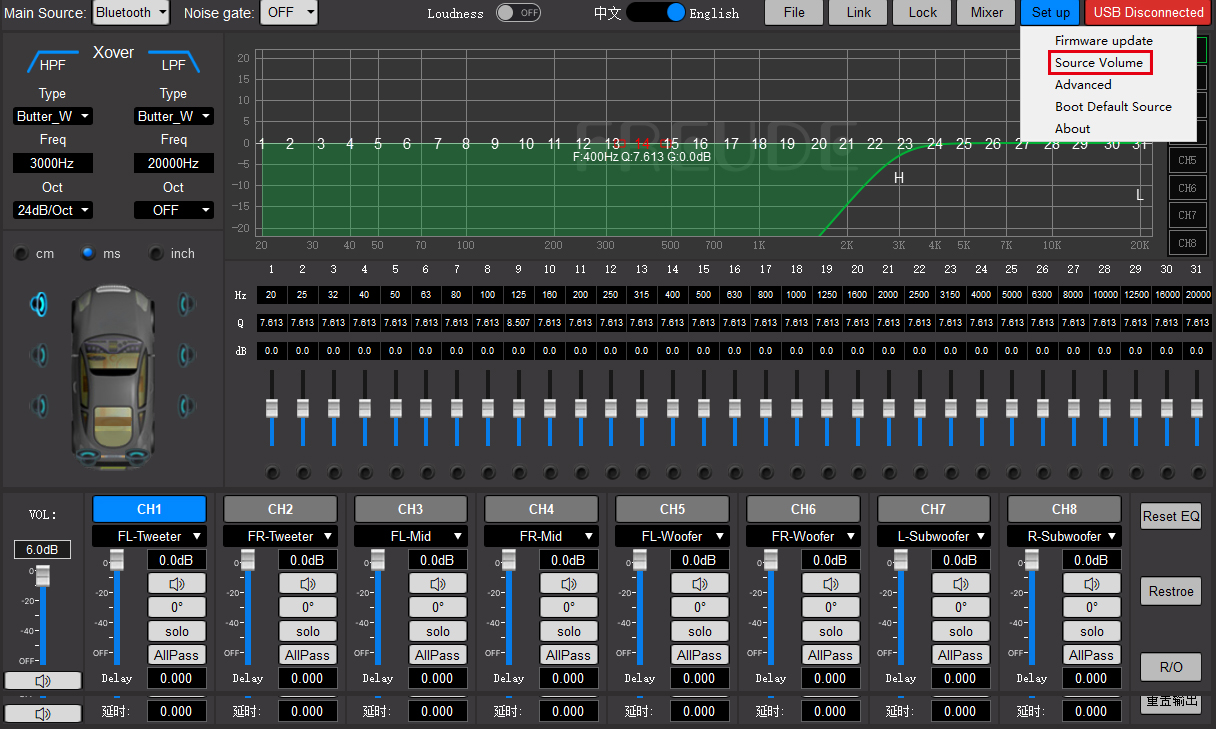

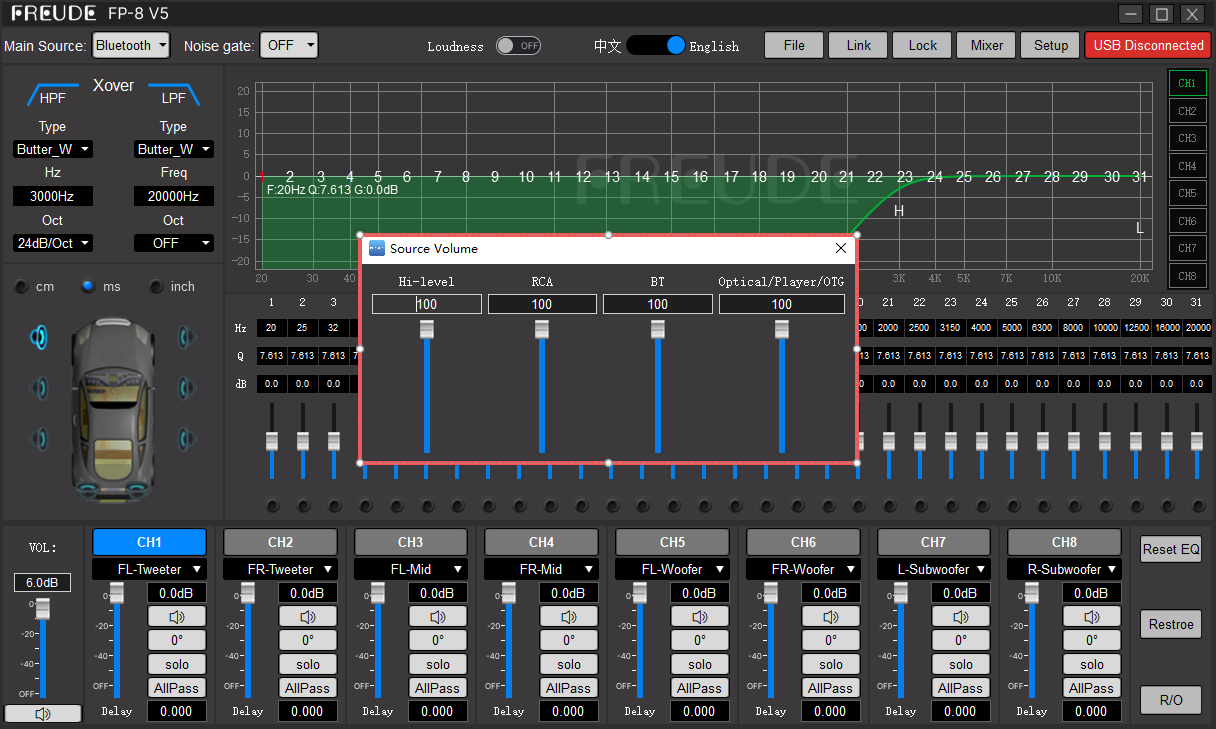

      IV.Independent Source Level Presets: Say Goodbye to "Volume Shock"

      • Owner’s Pain Point:Switching from Bluetooth to CD or optical causes sudden volume spikes? Or Bluetooth volume too low, then switching back to radio blows your ears out?
      • Core Function: Provides independent level calibration for all inputs—high-level, low-level, Bluetooth, digital (optical/OTG)—ensuring consistent gain structure across devices.
      • User Benefit:One-click alignment of source baseline volumes. Achieves seamless switching between devices with no sudden drops or blasting—smooth as silk.

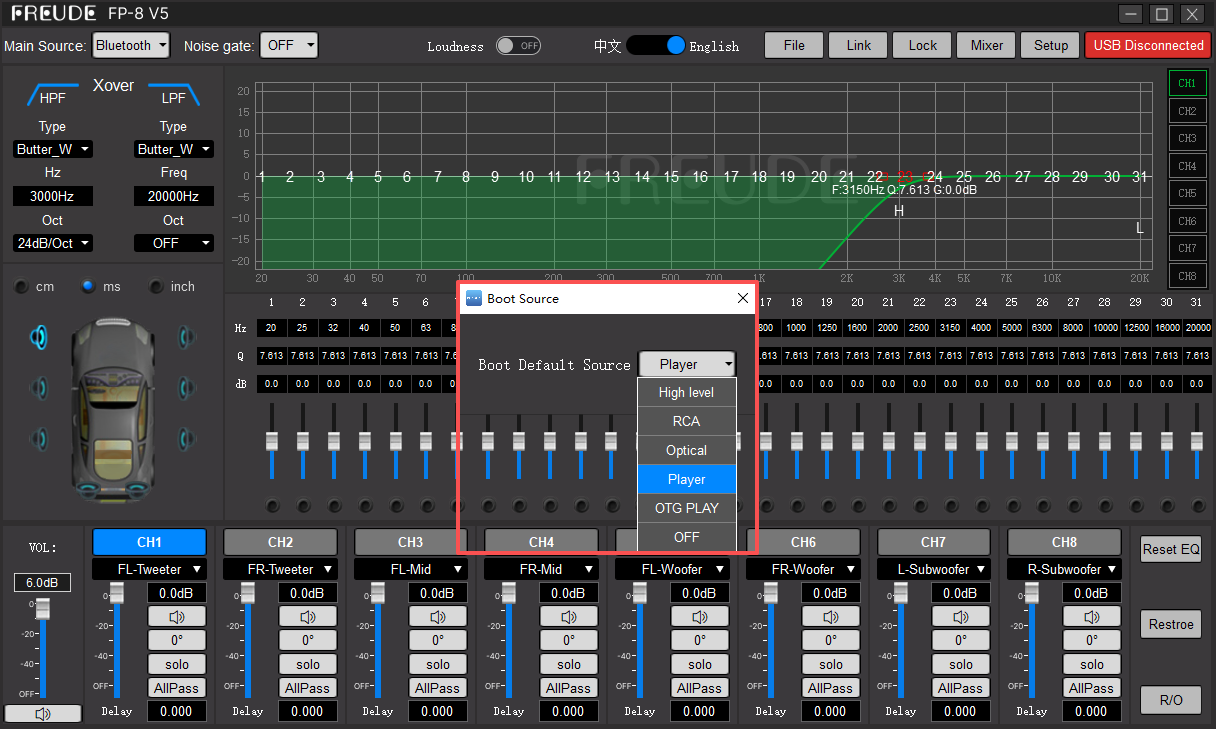

       V.Default Power-On Source: Understanding Your "Power-On Ritual"

      • Owner’s Pain Point:Having to manually select Bluetooth connection or switch to your player every time you start the car? This tedious process kills pre-drive enjoyment.
      • Core Function: Supports custom default power-on state. Users can preset the startup input source (e.g., fixed to optical or OTG) and even choose to enable/disable default mode.
      • User Benefit:Delivers "instant-on" minimalist usability. Get in, start the engine, and your favorite sound greets you exactly as you like—zero extra taps required.
        Note: This feature must be manually enabled
